TPB Integrated Tri-proof Light

TPB Integrated Tri-proof Light

TPB is a modular designed,highly durable,robust water-proof and dustproof light.With a uniform light distribution designed for industrial applications. The flexible rust and corrosion free mounting clamps for wall / ceiling provides very easy installation.

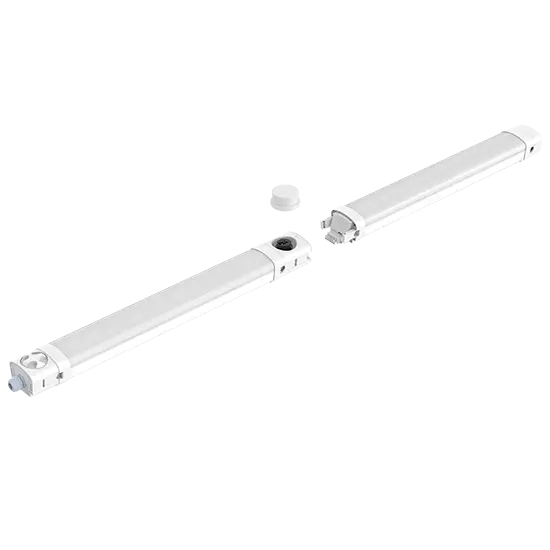

  • Modular design:Single installation,Cable connection & seamless connection optional.

  • Plug & play sensors and emergency modules:Easy & flexible installation,can be installed wherever needed.

  • Tool free installation:10s to complete the installation.

  • Self-Diagnostic Emergency driver:Automatic monthly & annual testing.

  • CCT & power tunable :Less SKU.


sensor optional patented ip 65 ul warranty 5years power adjustable cct adjustable 0 10v dimmers ik08
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColor wetLumen (lm)
(±10%)
Beam angleLED typeVoltage, frequencyPower(W)Maximum current
(A)
CRIPF
TPB-T018-AH-60K-001/S001/E001/D0015500-6500K1800120°SMD2835AC220-240V
50/60Hz
180.12>80>0.9
TPB-T018-AH-50K-001/S001/E001/D0014700-5300K1800
TPB-T018-AH-40K-001/S001/E001/D0013800-4200K1780
TPB-T018-AH-30K-001/S001/E001D0012700-3200K1740
TPB-T018-AH-TCK-001/S001/E001/D00130K-40K-60K1800
TPB-T036-AH-60K-001/S001/D0015500-6500K3600120°SMD2835AC220-240V
50/60Hz
360.25>80>0.9
TPB-T036-AH-50K-001/S001/D0014700-5300K3600
TPB-T036-AH-40K-001/S001/D0013800-4200K3520
TPB-T036-AH-30K-001/S001/D0012700-3200K3240
TPB-T036-AH-TCK-001/S001/D00130K-40K-60K3520
TPB-T050-AH-60K-001/S001/D0015500-6500K5000120°SMD2835AC220-240V
50/60Hz
500.3>80>0.9
TPB-T050-AH-50K-001/S001/D0014700-5300K5000
TPB-T050-AH-40K-001/S001/D0013800-4200K4900
TPB-T050-AH-30K-001/S001/D0012700-3200K4500
TPB-T050-AH-TCK-001/S001/D00130K-40K-60K4900
TPB-T018-AH-60K-301/S301/E301/D3015500-6500K2350120°SMD2835AC220-240V
50/60Hz
180.12>80>0.9
TPB-T018-AH-50K-301/S301/E301/D3014700-5300K2350
TPB-T018-AH-40K-301/S301/E301/D3013800-4200K2340
TPB-T018-AH-30K-301/S301/E301/D3012700-3200K2310
TPB-T018-AH-TCK-301/S301/E301/D30130K-40K-60K2350
TPB-T036-AH-60K-301/S301/D3015500-6500K4680120°SMD2835AC220-240V
50/60Hz
360.25>80>0.9
TPB-T036-AH-50K-301/S301/D3014700-5300K4680
TPB-T036-AH-40K-301/S301/D3013800-4200K4600
TPB-T036-AH-30K-301/S301/D3012700-3200K4320
TPB-T036-AH-TCK-301/S301/D30130K-40K-60K4600
TPB-T050-AH-60K-301/S301/D3015500-6500K6500120°SMD2835AC220-240V
50/60Hz
500.3>80>0.9
TPB-T050-AH-50K-301/S301/D3014700-5300K6500
TPB-T050-AH-40K-301/S301/D3013800-4200K6400
TPB-T050-AH-30K-301/S301/D3012700-3200K6000
TPB-T050-AH-TCK-301/S301/D30130K-40K-60K6400


001/S001/E001/D001=Milky lamp shade series/Sensor series/Emergency series/DALI dimming series.

301/S301/E301/D301=High output series/Sensor series/Emergency series/DALI dimming series.

Size
