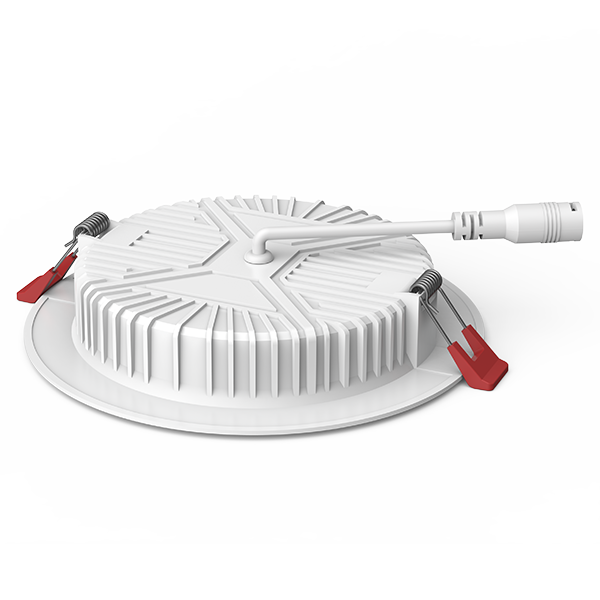

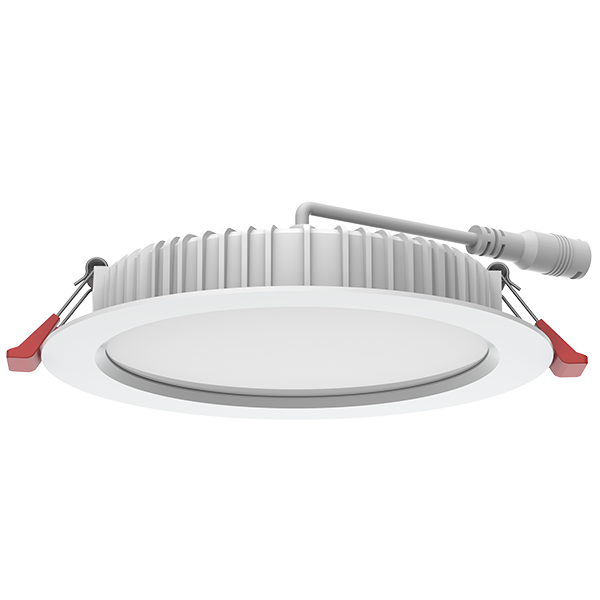

Ultra-thin Downlight DL101

Ultra-thin Downlight DL101

  • The product radiator is integrally formed, with a height of 30.2mm, ultra-thin, and white powder spraying for surface treatment.

  • PC diffuser mask is adopted to give uniform light.

  • The lamp is installed by snap type, which is faster.

  • The main material of this product is aluminum alloy, and the main process is die-casting processing.

  • Separate design of power supply and main body, which is more advantageous to ensure the life of power supply and LED.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
Ultra-thin Downlight DL101
2.5inch
3000K749SMD 2835110°10W220-240VAC
50/60Hz
Ra>80>0.9
4000K1050
5000K1100
6500K1000
Ultra-thin Downlight DL101
3.5inch
3000K1725SMD 2835110°15W220-240VAC
50/60Hz
Ra>80>0.9
4000K1650
5000K1575
6500K1500
Ultra-thin Downlight DL101
4inch
3000K2000SMD 2835110°20W220-240VAC
50/60Hz
Ra>80>0.9
4000K2100
5000K2200
6500K2300
Ultra-thin Downlight DL101
6inch
3000K3480SMD 2835110°30W220-240VAC
50/60Hz
Ra>80>0.9
4000K3300
5000K3150
6500K3000
Ultra-thin Downlight DL101
8inch
3000K4200SMD 2835110°40W220-240VAC
50/60Hz
Ra>80>0.9
4000K4400
5000K4600
6500K4800


Size

Ultra-thin Downlight DL101
