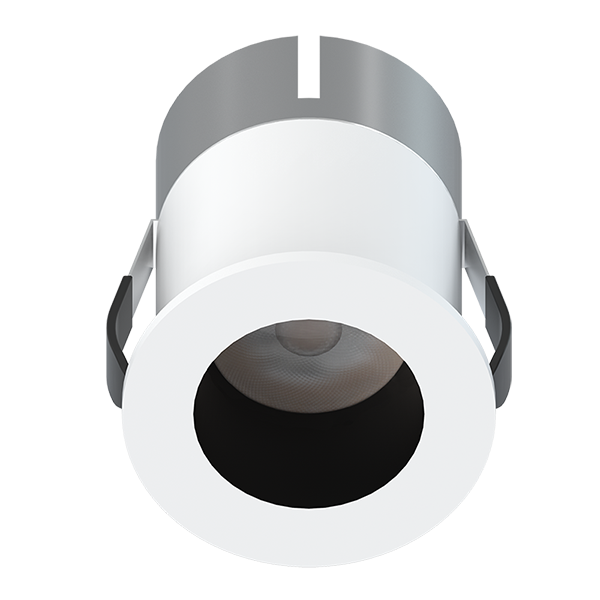

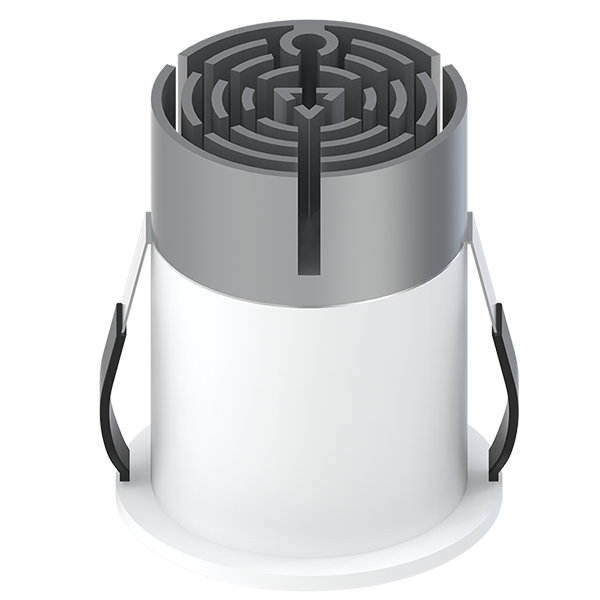

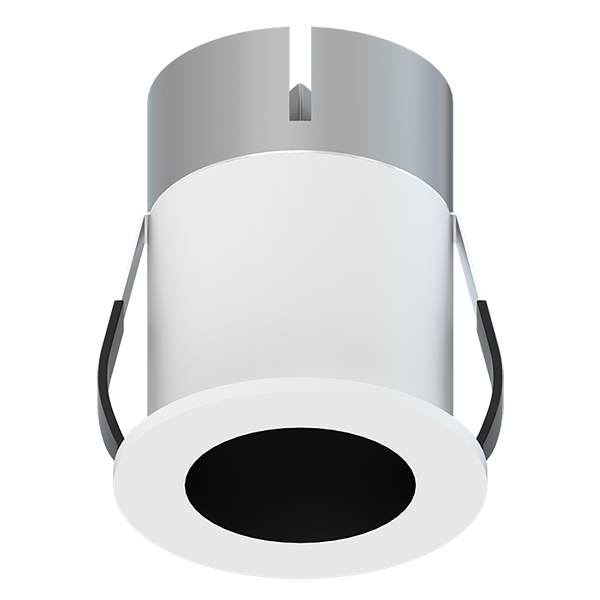

SDL01 LED Downlight

SDL01 LED Downlight

The lamp body adpot forging's design and forming process by pure-aluminum, the surface sprayed with matte white and gray, which offer more better heat dissipation with longer service life, also a upscale appearance.
The lamp body design with mini-size, make it suitable for more places ,especially the limited space. the more smaller, the more delicate, and the more hiding itself.
Anti glare design, UGR<19, create a comfortable lighting environment atmosphere. Narrow angle design, offer 10° 24°40°

SDL01 LED Downlight
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTColorLED TypeBeam anglePower(W)Max.Current(A)VoltagePFCRI
SDL01-002-R80AXXB-40K-013800K-4200KNWSMD353510°/24°/38°1.50.02220-240V AC>0.3>80
SDL01-002-R80AXXB-30K-012800K-3200KWW50/60Hz
SDL01-002-R80AXXB-27K-012600K-2800KWW
SDL01-004-R80AXXB-40K-013800K-4200KNWSMD35355°/10°/24°/38°3.50.04220-240V AC>0.3>80
SDL01-004-R80AXXB-30K-012800K-3200KWW50/60Hz
SDL01-004-R80AXXB-27K-012600K-2800KWW
SDL01-005-R80AXXB-40K-013800K-4200KNWCOB15°/24°/38°/60°50.03220-240V AC>0.84>80
SDL01-005-R80AXXB-30K-012800K-3200KWW50/60Hz
SDL01-005-R80AXXB-27K-012600K-2800KWW



Size
