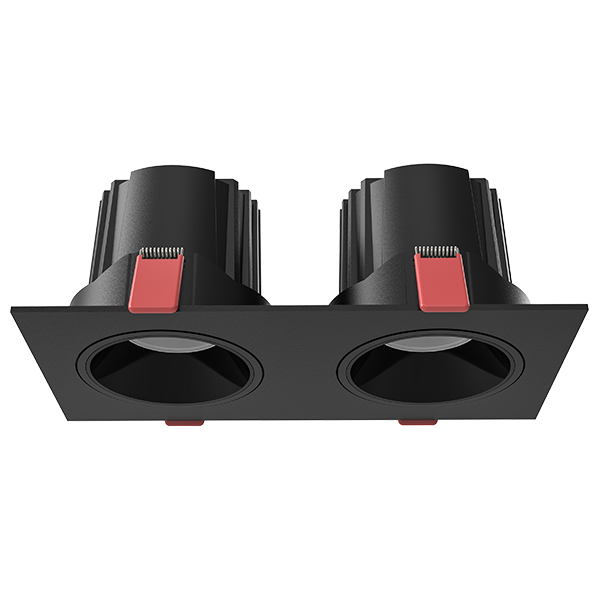

UGR<10 Downlight CL107 Series

UGR<10 Downlight CL107 Series

  • Adopt aluminum alloy as material, casting process. The heat sink and surface cover are formed independently.

  • PC diffuser mask is adopted to give uniform light. It is suitable for various anti-glare places.

  • Double reflective cups, can be used for deep anti-glare + honeycomb mesh anti-glare double-layer treatrment.

  • The lamp is installed by snap type, which is faster.

  • Optional reflection cup colors (bright white, gun black, bright black), suitable for different needs.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
UGR<10 Downlight CL105
3inch
3000K946COB15°/24°/36°10W220-240VAC
50/60Hz
Ra>90>0.9
4000K971
5000K979
UGR<10 Downlight CL105
4inch
3000K1220COB15°/24°/36°15W220-240VAC
50/60Hz
Ra>90>0.9
4000K1275
5000K1293
UGR<10 Downlight CL106
3inch
3000K925COB15°/24°/36°10W220-240VAC
50/60Hz
Ra>90>0.9
4000K970
5000K989
UGR<10 Downlight CL106
4inch
3000K1165COB15°/24°/36°15W220-240VAC
50/60Hz
Ra>90>0.9
4000K1228
5000K1263
UGR<10 Downlight CL107
3inch
3000K1762COB15°/24°/36°20W220-240VAC
50/60Hz
Ra>90>0.9
4000K1860
5000K1857
UGR<10 Downlight CL107
4inch
3000K1839COB15°/24°/36°25W220-240VAC
50/60Hz
Ra>90>0.9
4000K2057
5000K2054




Size

Narrow Frame Downlight CL107
