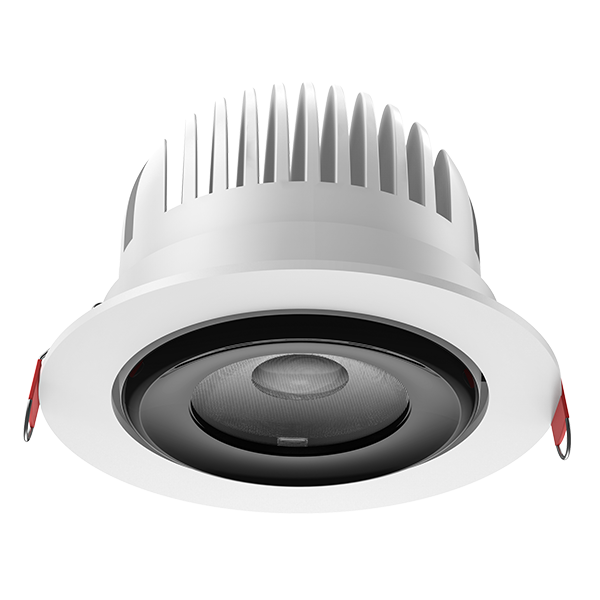

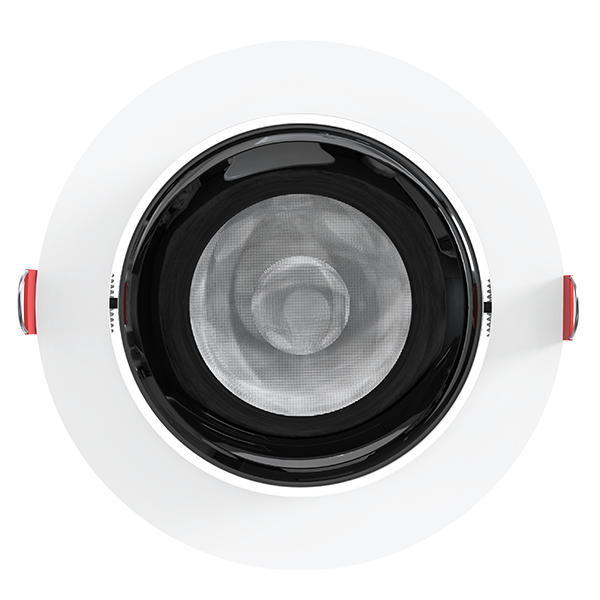

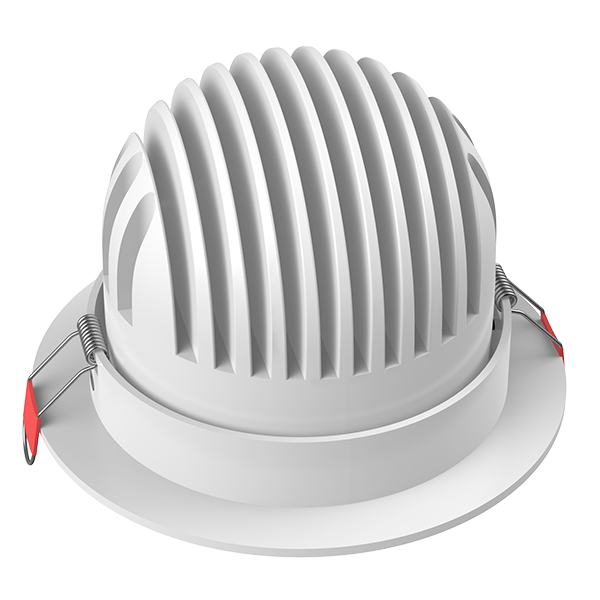

Novel Appearance Downlight CL104 Series

Novel Appearance Downlight CL104 Series

  • Adopt aluminum alloy as material, Casting process, heat dissipation is good.

  • PC diffuser mask is adopted to give uniform light.

  • Rotatable lighting angle, small light loss, large illumination area.

  • Unique and delicate looking design.

  • Beam angle optional, 15°, 24°, 38°, suitable for living rooms, corridors, shopping malls, entertainment, etc.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
CL104 Series 3inch3000K353COB15°/24°/38°5W220-240VAC
50/60Hz
Ra>90>0.9
4000K374
5000K378
CL104 Series 4inch3000K1130COB15°/24°/38°12W220-240VAC
50/60Hz
Ra>90>0.9
4000K1053
5000K1064
CL104 Series 5inch3000K2614COB15°/24°/38°24W220-240VAC
50/60Hz
Ra>90>0.9
4000K2604
5000K2614


Size

Narrow Frame Downlight CL104
