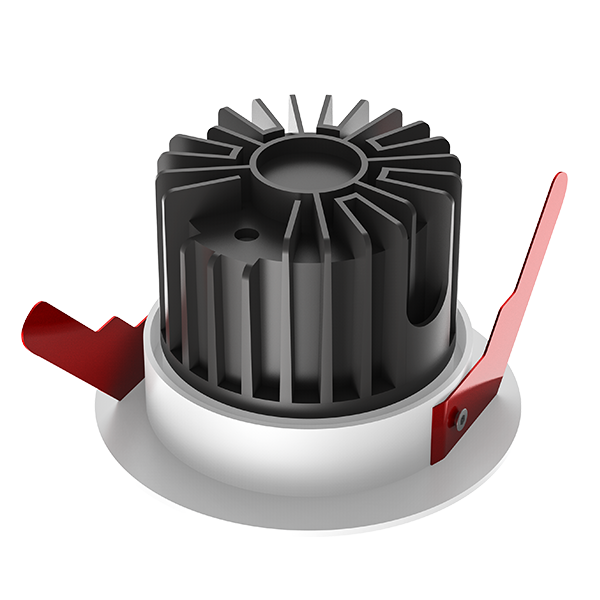

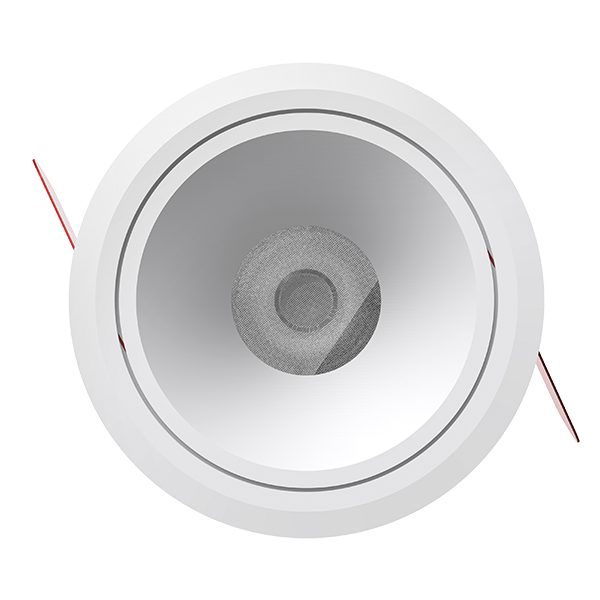

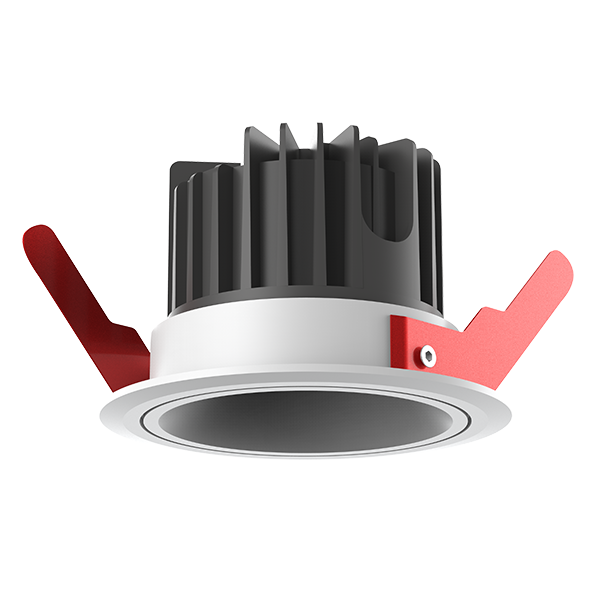

IP64 Waterproof Downlight CL103 Series

IP64 Waterproof Downlight CL103 Series

  • Adopt aluminum alloy as material, Casting process, heat dissipation is good.

  • PC diffuser mask is adopted to give uniform light.

  • Professional lens design, high transmittance, small light loss, anti-glare light.

  • Separate design of power supply and main body, which is more advantageous to ensure the life of power supply and LED.

  • Suitable for bathrooms, eaves, swimming pools, bathhouses and other water-related areas.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
CL103 Series 3inch3000K554COB24°/38°7W220-240VAC
50/60Hz
Ra>90>0.9
4000K635
5000K624
CL103 Series 4inch3000K1444COB24°/38°15W220-240VAC
50/60Hz
Ra>90>0.9
4000K1397
5000K1559


Size

Narrow Frame Downlight CL103
