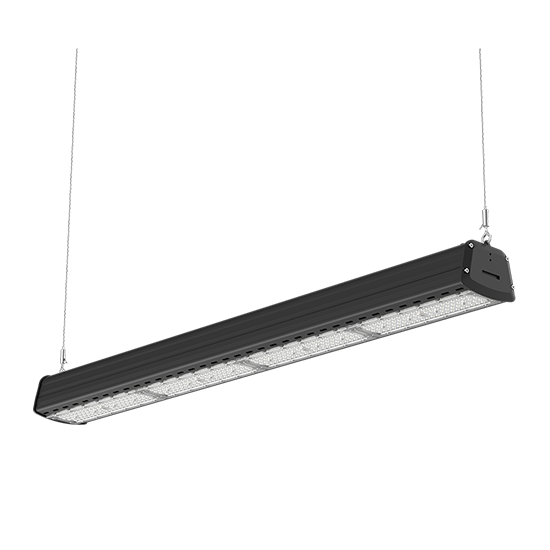

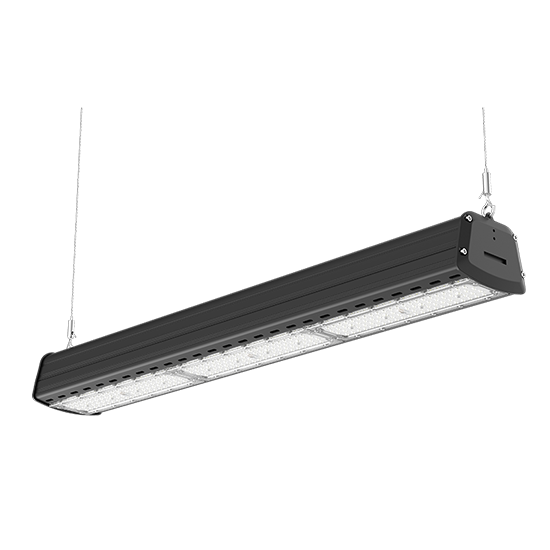

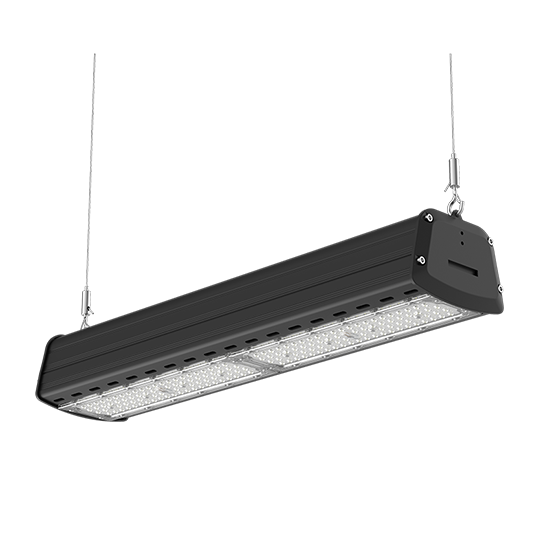

IP65 Linear High Bay

IP65 Linear High Bay

IP65 Linear High Bay is designed not only for warehouse, aisle but also for other application which need high bay lighting With high output LEDs and high transmittance lens.

  • Adopt waterproof structure design,waterproof level up to IP65;

  • Aluminum profile+PC lens,high impact-resistance;

  • High lighting effect of LEDs up to 130LM/W;

  • Compact appearance, easy to install and transport;

  • Multiple installation methods for option: Pendant chain installation; L-shape rotating bra

IP65 Linear High Bay
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCT

Lumen(lm)

(±10%)

Beam

(angle°)

PowerVoltageCRIPF
LHBP-100-AW-60K-YYY/DYYY5500-6500K1300090°
60°
40°
40* 120°
30* 70°
100AC100-277V
50/60Hz
>80>0.9
LHBP-100-AW-40K-YYY/DYYY3800-4300K12600
LHBP-100-AW-30K-YYY/DYYY2700-3200K12000
LHBP-150-AW-60K-YYY/DYYY5500-6500K1950090°
60°
40°
40* 120°
30* 70°
150AC100-277V
50/60Hz
>80>0.9
LHBP-150-AW-40K-YYY/DYYY3800-4300K19000
LHBP-150-AW-30K-YYY/DYYY2700-3200K18000
LHBP-200-AW-60K-YYY/DYYY5500-6500K2600090°
60°
40°
40* 120°
30* 70°
200AC100-277V
50/60Hz
>80>0.9
LHBP-200-AW-40K-YYY/DYYY3800-4300K25200
LHBP-200-AW-30K-YYY/DYYY2700-3200K24000
LHBP-300-AW-60K-YYY/DYYY5500-6500K3900090°
60°
40°
40* 120°
30* 70°
300AC100-277V
50/60Hz
>80>0.9
LHBP-300-AW-40K-YYY/DYYY3800-4300K37800
LHBP-300-AW-30K-YYY/DYYY2700-3200K36000

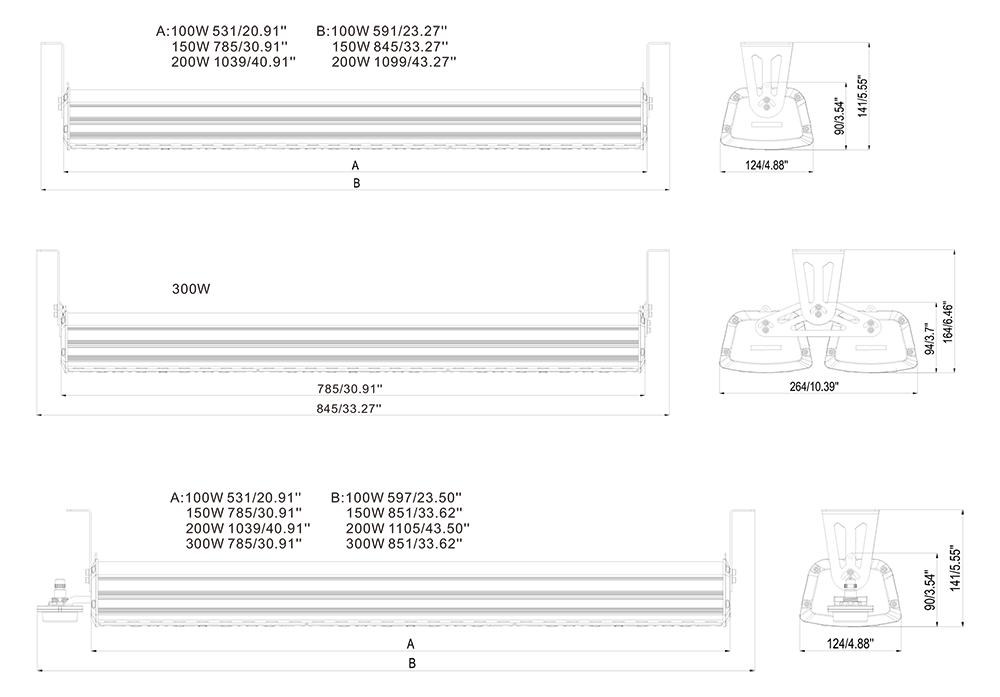

Size

Epistar Lighting
