GLH3 Series Grow Light

GLH3 Series Grow Light

The GLH3 Series are electronic horticultural LED fixture with 6/9 LED light bars to be used in greenhouses or in climate-controlled rooms.

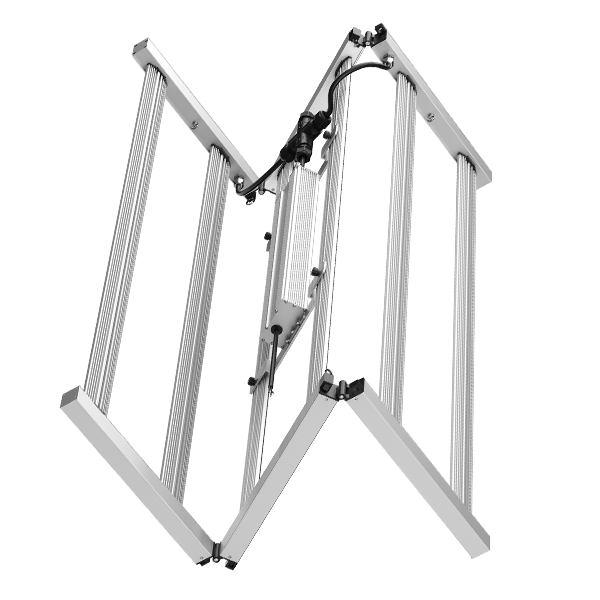

  • Z-shaped folding design saves space and freight.

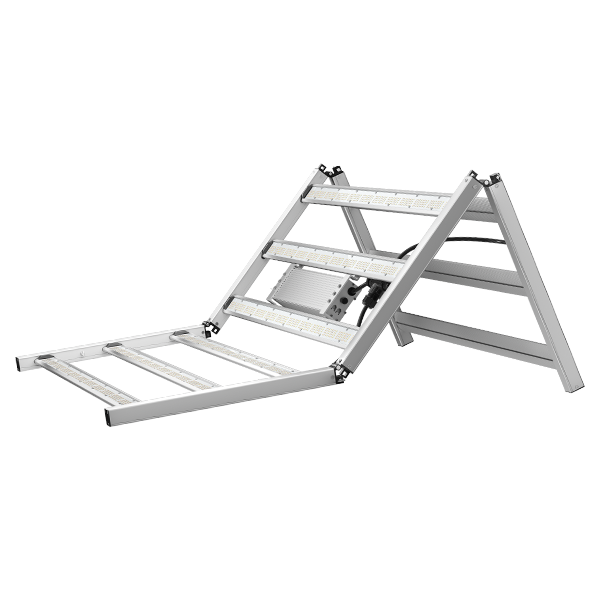

The folding part adopts thimble design, which can be automatically locked when unfolded 180°, making it easy to install and more stable.

  • Intelligent brightness adjustment

Light intensity can be adjusted according to the growth needs of plants in different periods (OFF-25%-50%-75%-100%-EXT)

ce dlc fc warranty 5years ul intertek
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelGLH3-640-AW-TWL-DH02GLH3-720-AW-TWL-DH02GLH3-1000-AH-TWL-DH02
SpectrumPhysioSpec Indoor™PhysioSpec Indoor™PhysioSpec Indoor™
Light Output PPF1720±50μmol/s1940±50μmol/s2700±100μmol/s
Efficacy2.8 µmol/J @ 277 AC2.8 µmol/J @ 277 AC2.8 µmol/J @ 277 AC
AC Input Power635W @ 277V AC715W @ 277V AC985W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz200-277V AC, 50/60Hz
Light Distribution
120°
Mounting Height6”- 12” (15.2-30.5cm)
Above Canopy
6”- 12” (15.2-30.5cm)
Above Canopy
6”- 12” (15.2-30.5cm) Above Canopy
Thermal Management
Passive
Max. Ambient Temperature
95°F / 35°C
Dimming
10 V-Source
Total Harmonic Distortion(THD)
< 10%
Product DimensionL1110*W1100*H55mmL1110*W1100*H55mmL1110 *W1605 *H55mm
Item Weight12Kg12Kg13.5Kg
LifetimeL90: > 36000hrsL90: > 36000hrsL90: > 50,000hrs
Certifications
UL 8800, FCC, Damp Location, DLC
Warranty
5-Year Standard Warranty

ModelGLH3-640-AW-TWL-D002GLH3-720-AW-TWL-D002GLH-1000-AW-TWL-D02
SpectrumPhysioSpec Indoor™PhysioSpec Indoor™PhysioSpec Indoor™
Light Output PPF1530±50µmol/s1720±50µmol/s2400±100µmol/s
Efficacy2.6 µmol/J @ 277 AC2.6 µmol/J @ 277 AC2.4 µmol/J @ 277 AC
AC Input Power635W @ 277V AC715W @ 277V AC985W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz200-277V AC, 50/60Hz
Light Distribution
120°
Mounting Height6”- 12” (15.2-30.5cm)
Above Canopy
6”- 12” (15.2-30.5cm)
Above Canopy
6”- 12” (15.2-30.5cm) Above Canopy
Thermal Management
Passive
Max. Ambient Temperature
95°F / 35°C
Dimming
10 V-Source
Total Harmonic Distortion(THD)
< 10%
Product DimensionL1110*W1100*H55mmL1110*W1100*H55mmL1110 *W1605 *H55mm
Item Weight12Kg12Kg13.5Kg
LifetimeL90: > 36000hrsL90: > 50,000hrsL90: > 50,000hrs
CertificationsUL 8800, FCC, Damp Location, DLC
Warranty5-Year Standard Warranty

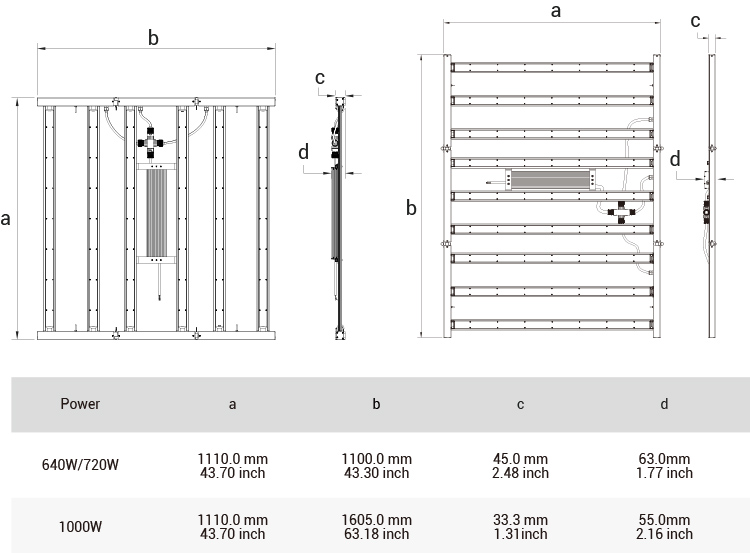

Size
