GLF Series Grow Light

GLF Series Grow Light

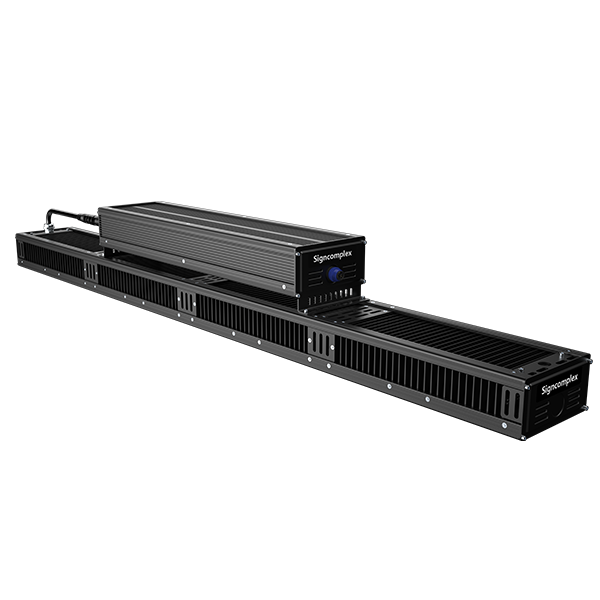

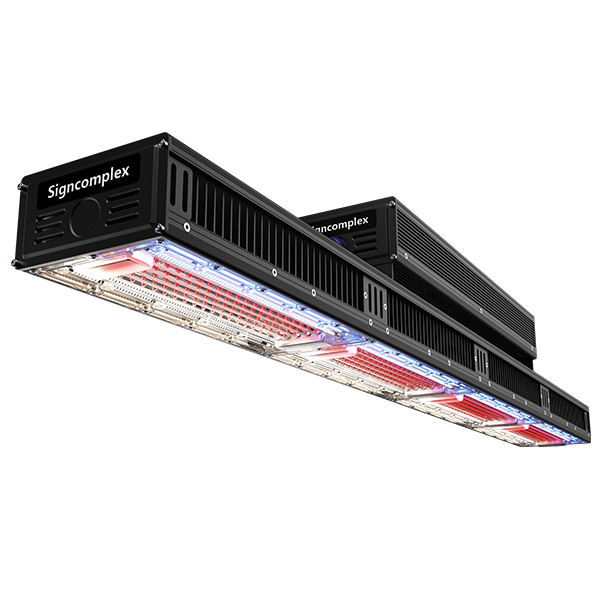

GLF series high efficiency LED top light is designed for greenhouse and indoor applications. The slim design minimizes sun interference while providing greater access to the plant canopy. The ultra-effective commercial design utilizes a closed loop heat pipe cooling system to rapidly wick heat from diodes, providing superior heat dissipation and longevity. The high efficiency R1/R3/R3 spectrum provides ideal conditions for both human and plant health to deliver better working conditions and consistent crop quality.


  • SECONDARY OPTICS: Conic 120° lens

  • Available Spectrums

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelGLF-300-AW-HR1GLF-300-AW-HR2GLF-300-AW-TR3
SpectrumPhysioSpec Greenhouse™PhysioSpec Greenhouse™PhysioSpec Indoor™
Light Output PPF720±40μmol/s720±40μmol/s960±50μmol/s
Efficacy2.4 μmol/J @ 277 AC2.4 μmol/J @ 277 AC3.2 µmol/J @ 277 AC
AC Input Power300W @ 277V AC300W @ 277V AC300W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz120-277V AC, 50/60Hz
Light DistributionSECONDARY OPTICS: 120°SECONDARY OPTICS: 120°SECONDARY OPTICS: 120°
Mounting Height24”- 72” (61-183cm) Above Canopy24”- 72” (61-183cm) Above Canopy24”- 72” (61-183cm) Above Canopy
Thermal ManagementPassivePassivePassive
Max. Ambient Temperature95°F / 35°C95°F / 35°C95°F / 35°C
Dimming10 V-Source10 V-Source10 V-Source
Total Harmonic Distortion(THD)< 10%< 10%< 10%
Product DimensionL607.5 *W130 *H160mmL607.5 *W130 *H160mmL607.5 *W130 *H160mm
Item Weight6Kg6Kg6Kg
LifetimeL90: > 36000hrsL90: > 36000hrsL90: > 36000hrs
CertificationsUL 8800, FCC, Damp Location, DLCUL 8800, FCC, Damp Location, DLCUL 8800, FCC, Damp Location, DLC
Warranty5-Year Standard Warranty5-Year Standard Warranty5-Year Standard Warranty

ModelGLF-600-AW-HR1GLF-600-AW-HR2GLF-600-AW-TR3
SpectrumPhysioSpec Greenhouse™PhysioSpec Greenhouse™PhysioSpec Indoor™
Light Output PPF1440±100μmol/s1440±100μmol/s1920±100μmol/s
Efficacy2.4 μmol/J @ 277 AC2.4 μmol/J @ 277 AC3.2 µmol/J @ 277 AC
AC Input Power600W @ 277V AC600W @ 277V AC600W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz120-277V AC, 50/60Hz
Light DistributionSECONDARY OPTICS: 120°SECONDARY OPTICS: 120°SECONDARY OPTICS: 120°
Mounting Height24”- 72” (61-183cm) Above Canopy24”- 72” (61-183cm) Above Canopy24”- 72” (61-183cm) Above Canopy
Thermal ManagementPassivePassivePassive
Max. Ambient Temperature95°F / 35°C95°F / 35°C95°F / 35°C
Dimming10 V-Source10 V-Source10 V-Source
Total Harmonic Distortion(THD)< 10%< 10%< 10%
Product DimensionL1203 *W130 *H160mmL1203 *W130 *H160mmL1203 *W130 *H160mm
Item Weight12Kg12Kg12Kg
LifetimeL90: > 36000hrsL90: > 36000hrsL90: > 36000hrs
CertificationsUL 8800, FCC, Damp Location, DLCUL 8800, FCC, Damp Location, DLCUL 8800, FCC, Damp Location, DLC
Warranty5-Year Standard Warranty5-Year Standard Warranty5-Year Standard Warranty


Size
