GLB Series Grow Light

GLB Series Grow Light

The GLB Series are electronic horticultural LED fixture with 5/6/10 LED light bars to be used in greenhouses or in climate-controlled rooms.

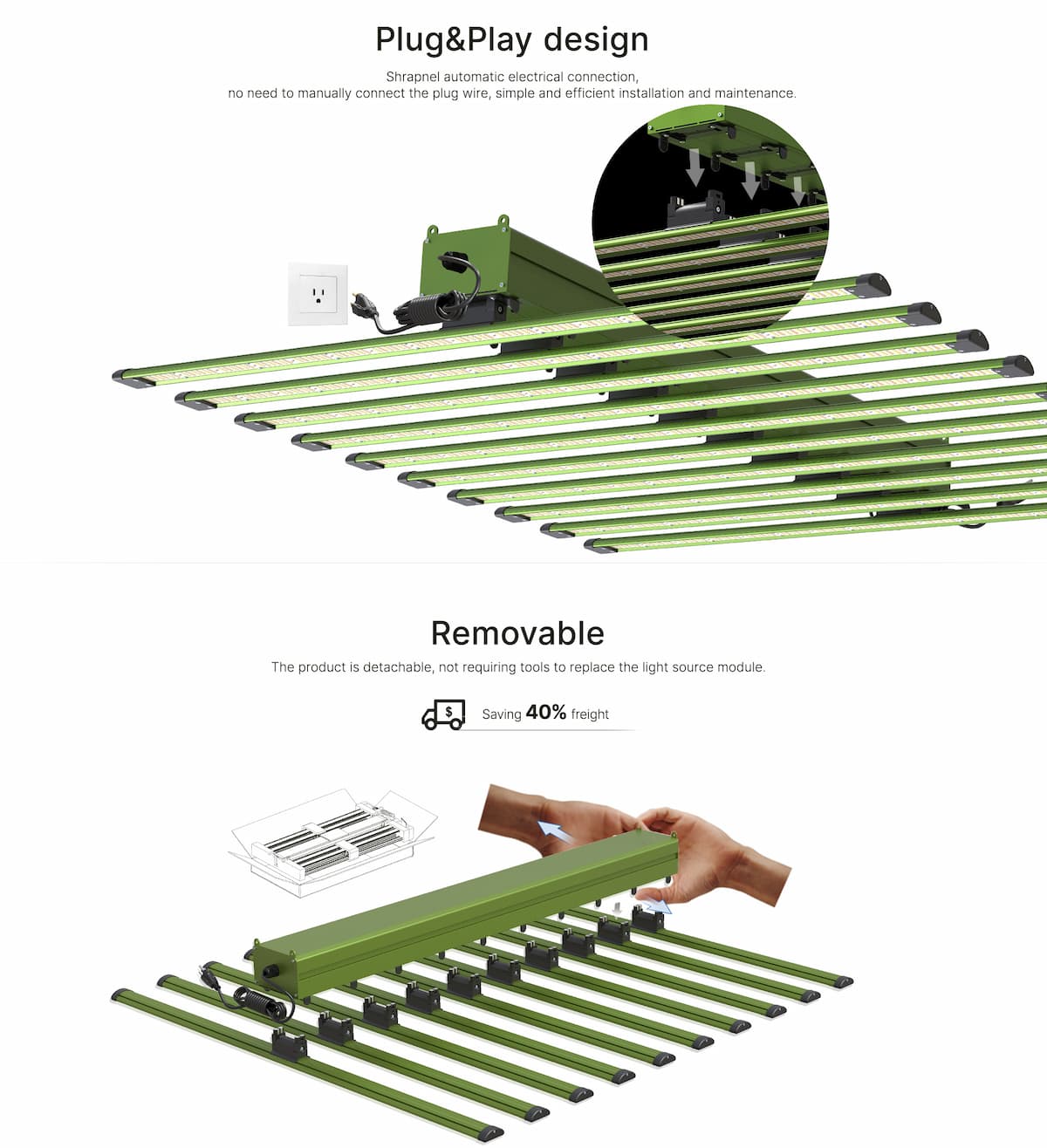

  • The product is detachable, no need tools to replace the light source module.

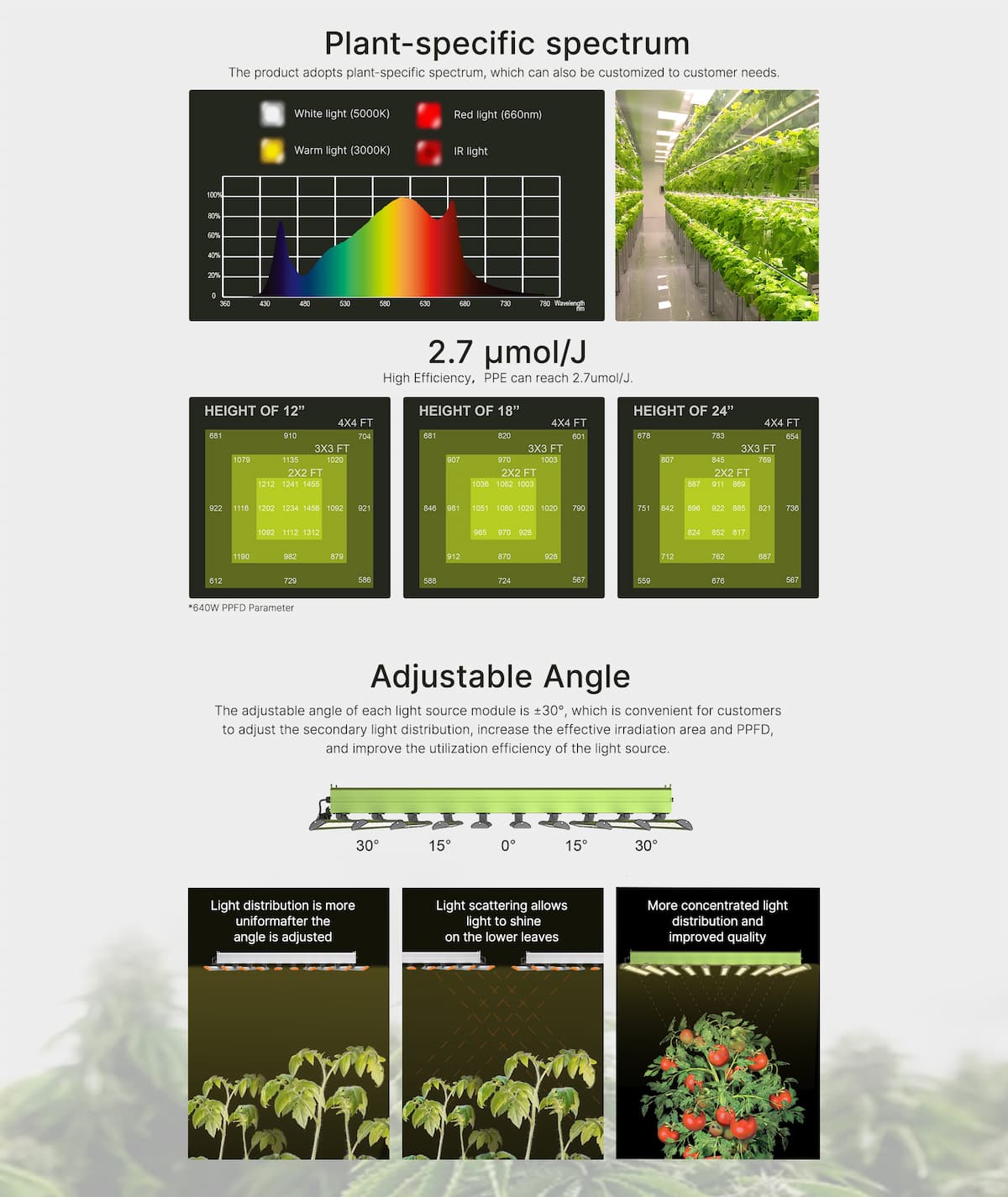

  • The adjustable angle of each light source module is ±30 degrees

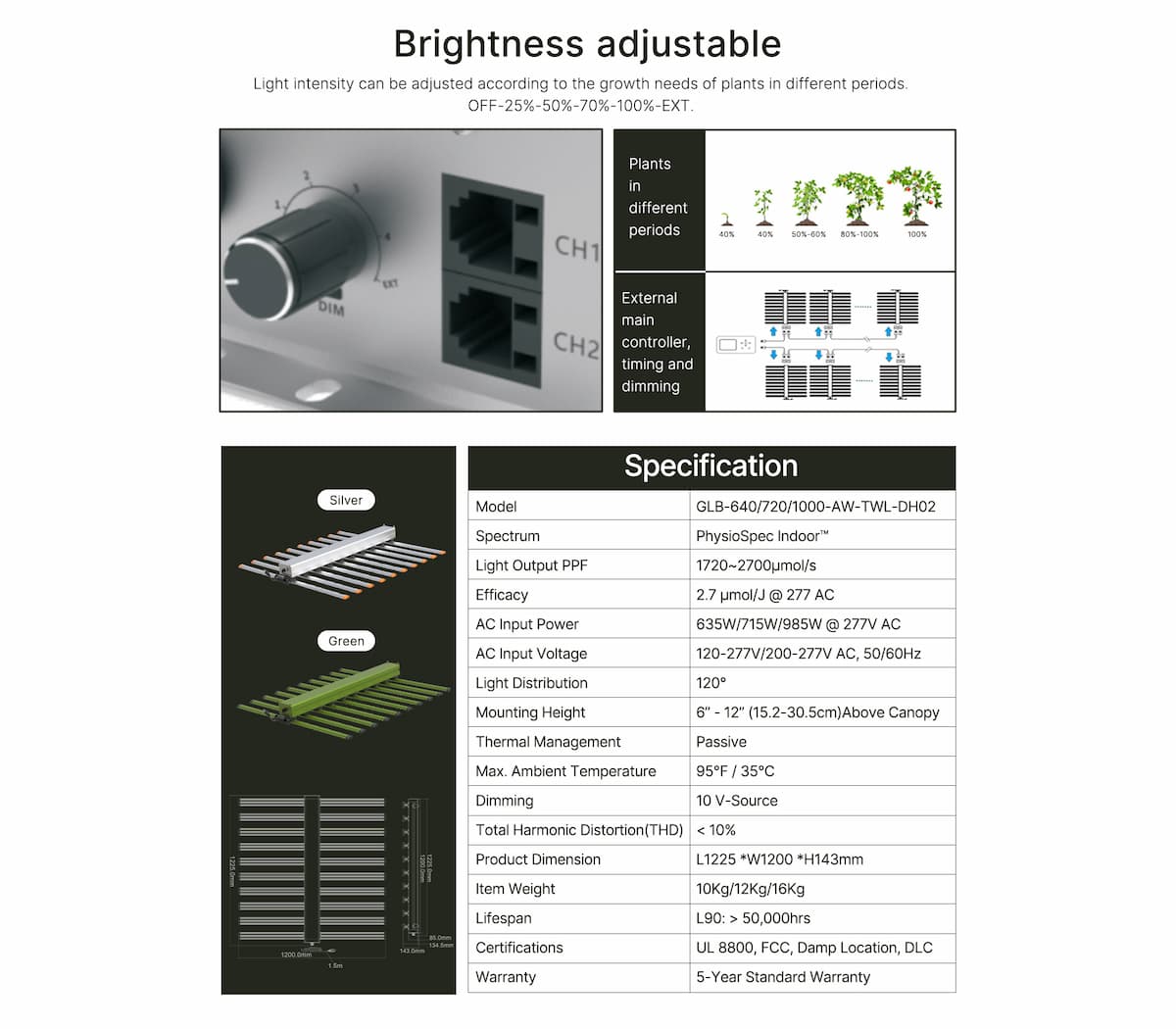

  • Intelligent brightness adjustment

GLB Series Grow Light
Inquire
Inquire
Share
Share
Details
Specifications
Download


Parameters

ModelGLB-640-AW-TWL-DH02GLB-720-AW-TWL-DH02GLB-1000-AW-TWL-DH02
SpectrumPhysioSpec Indoor™PhysioSpec Indoor™PhysioSpec Indoor™
Light Output PPF1720±50µmol/s1940±50µmol/s2700±100µmol/s
Efficacy2.7 µmol/J @ 277 AC2.7 µmol/J @ 277 AC2.7 µmol/J @ 277 AC
AC Input Power635W @ 277V AC715W @ 277V AC985W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz200-277V AC, 50/60Hz
Light Distribution/120°
Mounting Height6”- 12” (15.2-30.5cm)6”- 12” (15.2-30.5cm)6”- 12” (15.2-30.5cm) Above Canopy
Above CanopyAbove Canopy
Thermal Management/Passive
Max. Ambient Temperature/95°F / 35°C
Dimming/10 V-Source
Total Harmonic Distortion(THD)/< 10%
Product DimensionL1225 *W1200 *H143mmL1225 *W1200 *H143mmL1225 *W1200 *H143mm
Item Weight10Kg12Kg16Kg
LifetimeL90: > 50,000hrsL90: > 50,000hrsL90: > 50,000hrs
Certifications
UL 8800, FCC, Damp Location, DLC
Warranty
5-Year Standard Warranty



ModelGLB-640-AW-TWL-D02GLB-720-AW-TWL-D02GLB-1000-AW-TWL-D02
SpectrumPhysioSpec Indoor™PhysioSpec Indoor™PhysioSpec Indoor™
Light Output PPF1530±50µmol/s1720±50µmol/s2400±100µmol/s
Efficacy2.4 µmol/J @ 277 AC2.4 µmol/J @ 277 AC2.4 µmol/J @ 277 AC
AC Input Power635W @ 277V AC715W @ 277V AC985W @ 277V AC
AC Input Voltage120-277V AC, 50/60Hz120-277V AC, 50/60Hz200-277V AC, 50/60Hz
Light Distribution
120°
Mounting Height6”- 12” (15.2-30.5cm)6”- 12” (15.2-30.5cm)6”- 12” (15.2-30.5cm) Above Canopy
Above CanopyAbove Canopy
Thermal Management
Passive
Max. Ambient Temperature
95°F / 35°C
Dimming
10 V-Source
Total Harmonic Distortion(THD)
< 10%
Product DimensionL1225 *W1200 *H143mmL1225 *W1200 *H143mmL1225 *W1200 *H143mm
Item Weight10Kg12Kg16Kg
LifetimeL90: > 50,000hrsL90: > 50,000hrsL90: > 50,000hrs
CertificationsUL 8800, FCC, Damp Location, DLC
Warranty5-Year Standard Warranty


Size

RGB Led Controller Dmx
