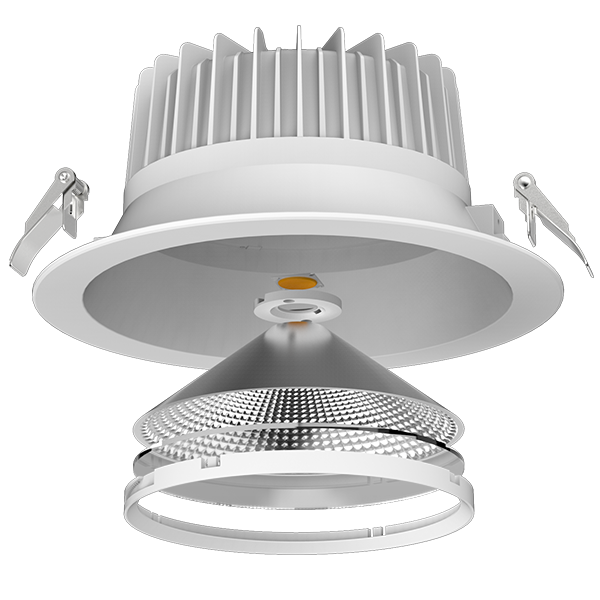

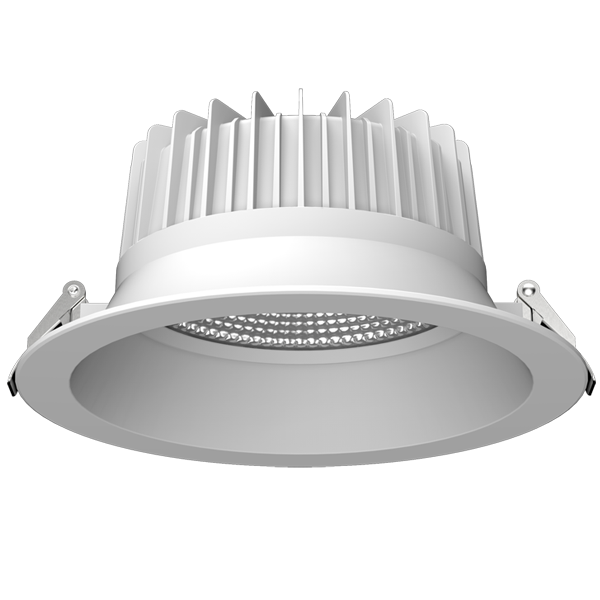

Dolux COB Downlight

Dolux COB Downlight

  • Adopt aluminum alloy as material, die-casting process, high-end and gorgeous;

  • Unique appearance, beautiful design and gorgeous;

  • Excellent thermal management to ensure the long lifetime of LED;

  • External power supplier, ensure the lifetime of power supply and LEDs

  • High efficient and energy-saving LED driver.

ce rohs warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLampshadeLumen (lm)Power (w)LED Type/quantityVoltage and frequencyCRIPF
Dolux Downlight 5W5000/4000/3000Frosted/transparent4305COB1pcsAC100-240V50/60Hz>80≥0.9
Dolux Downlight 7W5000/4000/3000Frosted/transparent5007
Dolux Downlight 9W5000/4000/3000Frosted/transparent6509
Dolux Downlight 12W5000/4000/3000Frosted/transparent92012
Dolux Downlight 7W5000/4000/3000Frosted/transparent5507COB1pcsAC100-240V50/60Hz>80≥0.9
Dolux Downlight 9W5000/4000/3000Frosted/transparent6909
Dolux Downlight 12W5000/4000/3000Frosted/transparent100012
Dolux Downlight 15W5000/4000/3000Frosted/transparent115015
Dolux Downlight12W5000/4000/3000Frosted/transparent115012COB1pcsAC100-240V50/60Hz>80≥0.9
Dolux Downlight 18W5000/4000/3000Frosted/transparent170018
Dolux Downlight 25W5000/4000/3000Frosted/transparent225025
Dolux Downlight 30W5000/4000/3000Frosted/transparent285030
Dolux Downlight 18W5000/4000/3000Frosted/transparent170018COB1pcsAC100-240V50/60Hz>80≥0.9
Dolux Downlight 25W5000/4000/3000Frosted/transparent235025
Dolux Downlight 30W5000/4000/3000Frosted/transparent270030
Dolux Downlight 35W5000/4000/3000Frosted/transparent315035

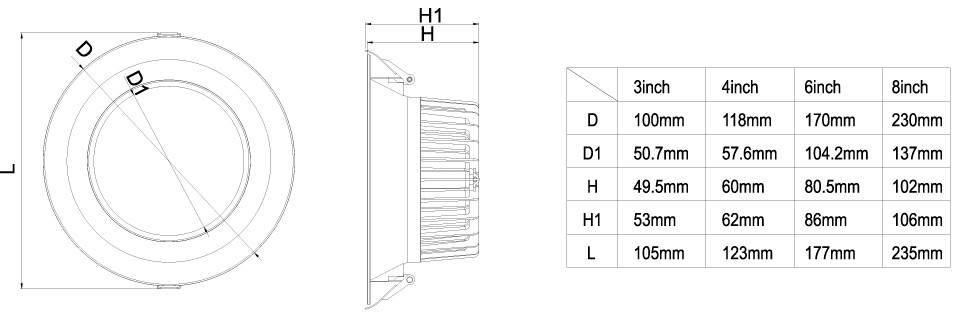

Size
