Commercial Downlight ML Series

Commercial Downlight ML Series

The ML commercial LED Downlight is designed for new or remodel applications.

It's offers remote J-box dimming compatibility using 0-10-volt controls and is quick and easy to install into existing recessed frames without removing the housing, and the recessed fixture mounts directly into the ceiling.


  • High efficient design

  • Better heat sink

  • Energy-saving

  • Easy to install

  • 0-10V Dimming

cri90 eneragy star intertek rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
Commercial Downlight
4inch
3000K2100SMD 283570°25W100-277VAC
50/60Hz
Ra>90>0.9
4000K2200
5000K2200
Commercial Downlight
6inch
3000K3200SMD 283570°38W100-277VAC
50/60Hz
Ra>90>0.9
4000K3400
5000K3300

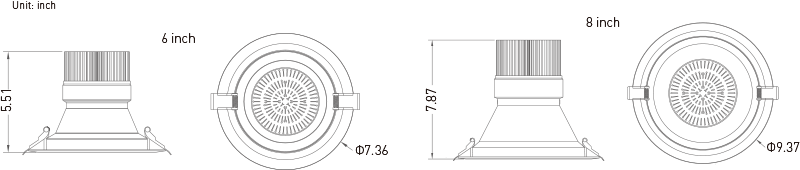

Size

Commercial Downlight ML Series
