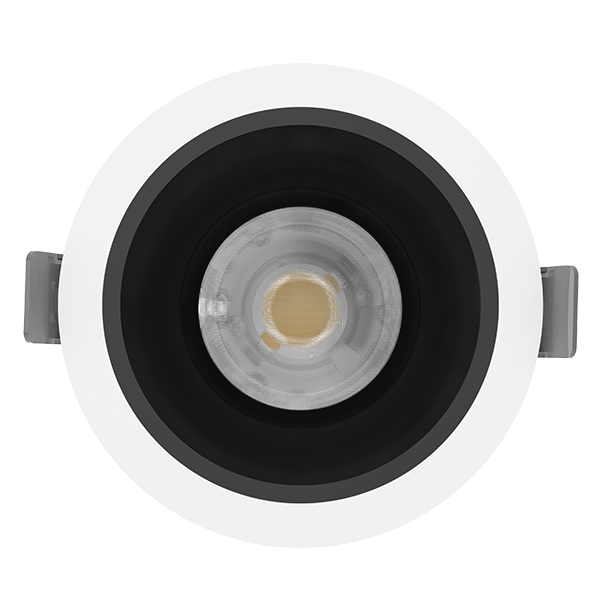

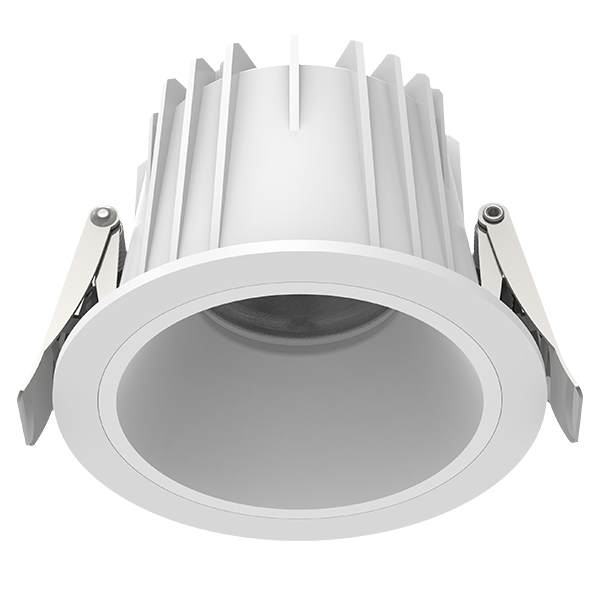

COB Downlight DL105 Series

COB Downlight DL105 Series

  • Unique structure ensure optimal cooling effect and light effect

  • Adopt aluminum alloy as material, die-casting process, high-end and gorgeous

  • PC lens, with secondary optical design, the reject with metal luster to improve light effect and uniformity

  • Significant energy-saving, flexible color difference control system, ensure single persistance of light and color.

ip54 sdcm ce rohs warranty
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)LED TypeBeam angelPowerVoltage(V)/FrequencyCRIPF
±10%
COB Downlight
3inch
3000K916COB24°/50°9W220-240VAC
50/60Hz
Ra>90>0.9
4000K958
5000K992
COB Downlight
4inch
3000K992COB24°/50°15W220-240VAC
50/60Hz
Ra>90>0.9
4000K1399
5000K1130
COB Downlight
5inch
3000K2646COB24°/50°24W220-240VAC
50/60Hz
Ra>90>0.9
4000K2616
5000K2646
COB Downlight
6inch
3000K3625COB24°/50°35W220-240VAC
50/60Hz
Ra>90>0.9
4000K4000
5000K3643
COB Downlight
7inch
3000K4372COB24°/50°45W220-240VAC
50/60Hz
Ra>90>0.9
4000K4372
5000K4411

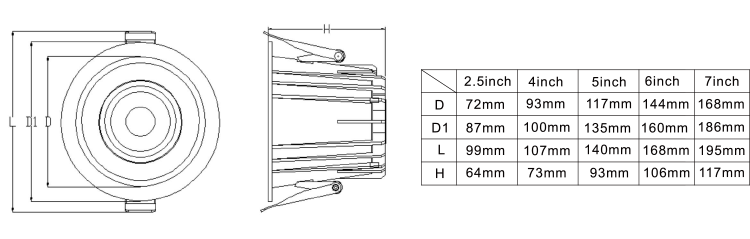

Size

COB Downlight DL105 Series
