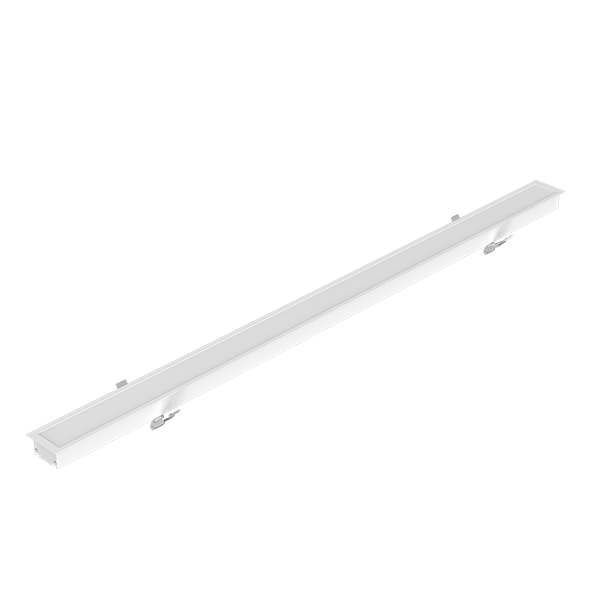

7035 LED Linear Light

7035 LED Linear Light

RL7035 linear light is mainly designed for recessed installation or continous lighting, the light body has simple appearance with soft light continous connection and it is widely used in shopping malls, office and so on.


1. The whole lamp is aluminum alloy+PC materials with surface oxidation silver process.

2. Allowing reliable and solid structure. Good heat dissipation and optical performance.

3. Multiple jointing can realized Via "+" "L" "T" shape connecting accessories.

4. Adoption of U-shaped support and spring buckle type installation for optional

0 10v dimmers dali 220 240v ac led 2835 pf 2 original design ies ce rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters


ModelCCTLight Output
(lm)
LED typePower(W)
(±10%)
Length
(mm)
Voltage
(V)
CRIPF
SC-RL7035-020-AW-CW6000-6500K1500283520615220-240VAC
50/60HZ
≥80≥0.9
SC-RL7035-020-AW-NW3800-4200K1500
SC-RL7035-020-AW-WW2800-3200K1300
SC-RL7035-040-AW-CW6000-6500K30002835401215220-240VAC
50/60HZ
≥80≥0.9
SC-RL7035-040-AW-NW3800-4200K3000
SC-RL7035-040-AW-WW2800-3200K2600
SC-RL7035-050-AW-CW6000-6500K37502835501515220-240VAC
50/60HZ
≥80≥0.9
SC-RL7035-050-AW-NW3800-4200K3750
SC-RL7035-050-AW-WW2800-3200K3250

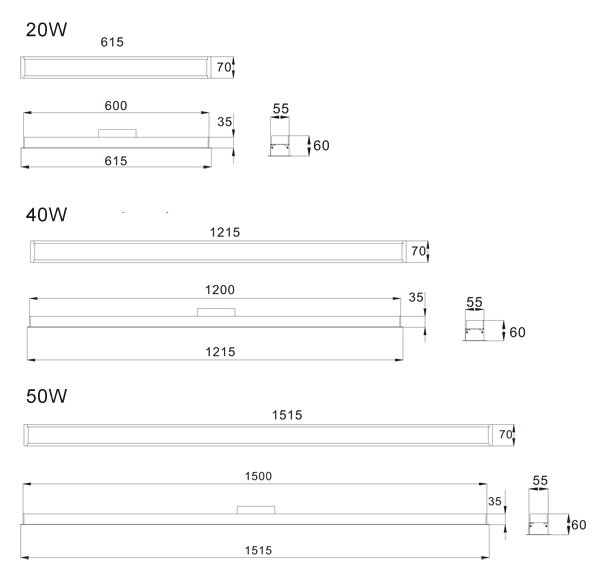

Size

T8 Tube Light
