5550 Linear Trunking System

5550 Linear Trunking System

SL5550 Linear lights are mainly used in site that requires continuous lighting and different irritation angle. The light body has simple appearance with soft light. With multiple irritation angles for selection, it is widely used in large department stores, workshops, supermarket, warehouse, parking lots and so on.


1. Adoption of aluminum alloy section + PMMA lens, surface powder coating technology, exquisite overall appearance, simple structure, light weight, good heat dissipation and optical property.


2. The light body adopts split type design. The light body and track use stainless steel 301 Shrapnel for connection. It is designed with auxiliary safety rope, making it convenient to install and dismantle the light and track and maintenance.


3. The track adopts splicing design, which allows continuous connection. The track is tensioned with spring buckles to realize seamless connection.

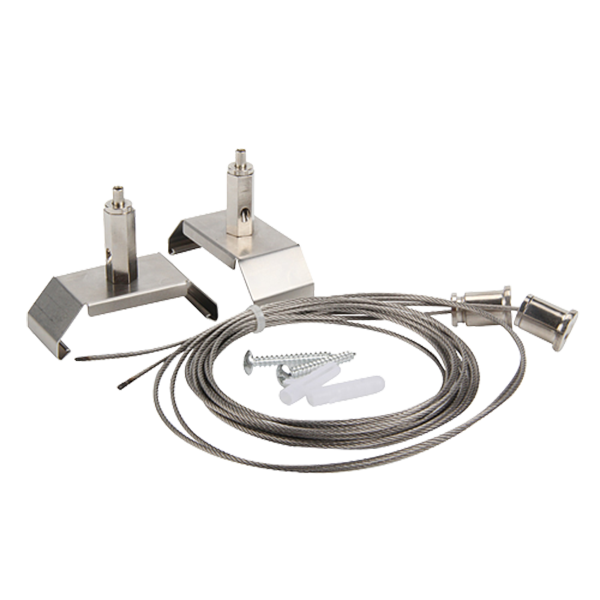

4. The push type hoisting buckles adopt stainless steel 301 materials and reverse buckle structure, which allows quick installation and is safe and reliable.


5. The inside of the light adopts 1.5mm2 multiple-core copper wire and WAGO male and female of terminal of plug-in connectors to realize quick connection among lights. The single phase power and three-phase power may be connected outside of the light. When the voltage is 220V after the single-phase primary incoming line is connected, the total power may reach 2000W and the total power of three-phase power may reach 6000W after three-phase primary incoming line is connected.

ce rohs pf 9 cri 80 0 warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColourLumen

LED

Type

LED Qty.(pcs)Length(mm)Voltage(V)Power(W)(±10%)CRIDimming Optional
5550 linear light 50WWhite600028352521200

100-277 VAC

50/60Hz

50>80non-dimmable
5550 linear light 50WNeutral White6250
5550 linear light 50WWarm White5750
5550 linear light 65WWhite780028353361500

100-277 VAC

50/60Hz

65>80non-dimmable
5550 linear light 65WNeutral White8125
5550 linear light 65WWarm White7475
5550 linear light 50WWhite600028352521200

100-277 VAC

50/60Hz

50>80

0-10V

dimming

5550 linear light 50WNeutral White6250
5550 linear light 50WWarm White5750
5550 linear light 65WWhite780028353361500

100-277 VAC

50/60Hz

65>80

0-10V

dimming

5550 linear light 65WNeutral White8125
5550 linear light 65WWarm White7475
5550 linear light 50WWhite600028352521200

100-277 VAC

50/60Hz

50>80Dali
5550 linear light 50WNeutral White6250
5550 linear light 50WWarm White5750
5550 linear light 65WWhite780028353361500

100-277 VAC

50/60Hz

65>80Dali
5550 linear light 65WNeutral White8125
5550 linear light 65WWarm White7475

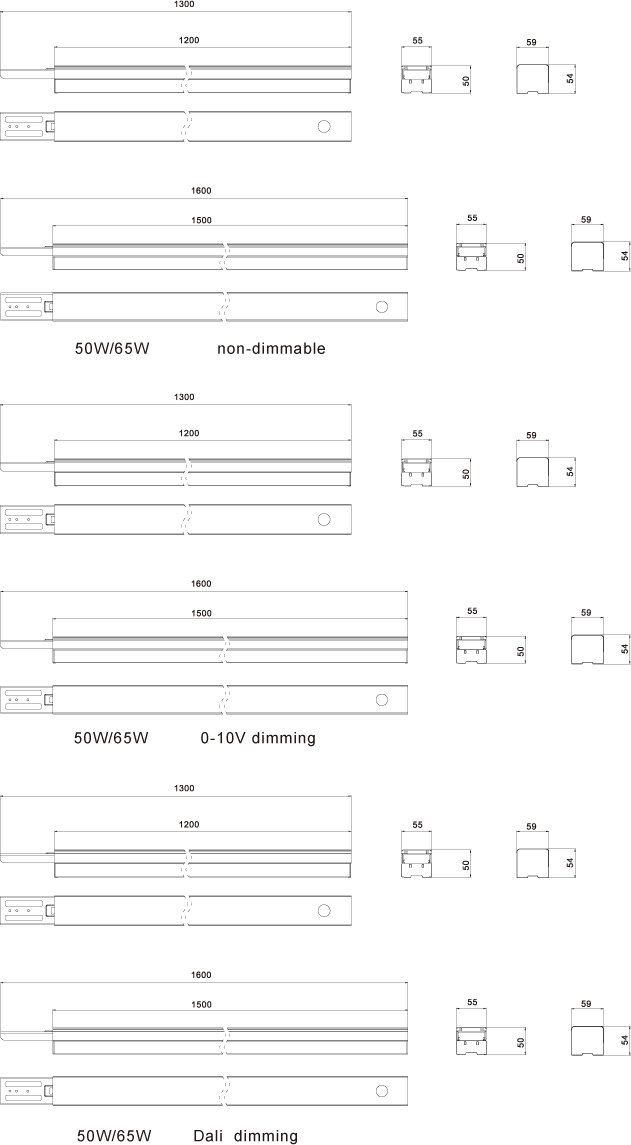

Size

Troffer Type Lighting Fixture
