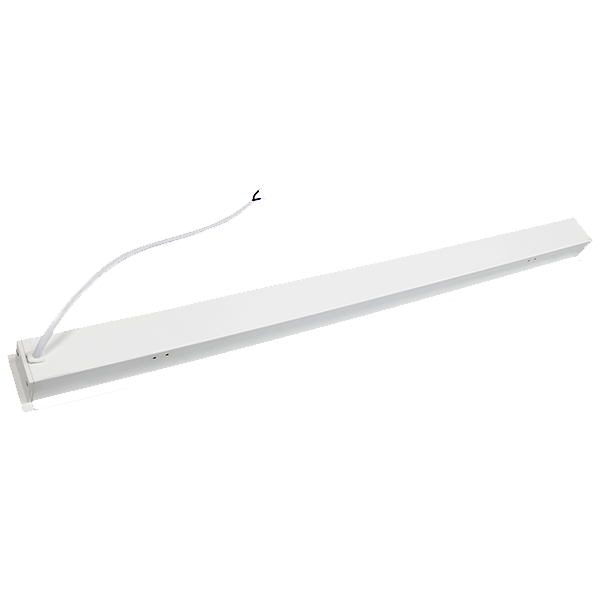

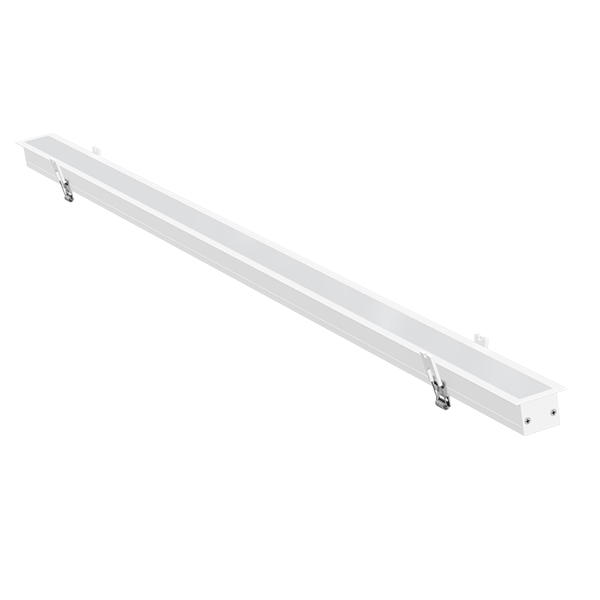

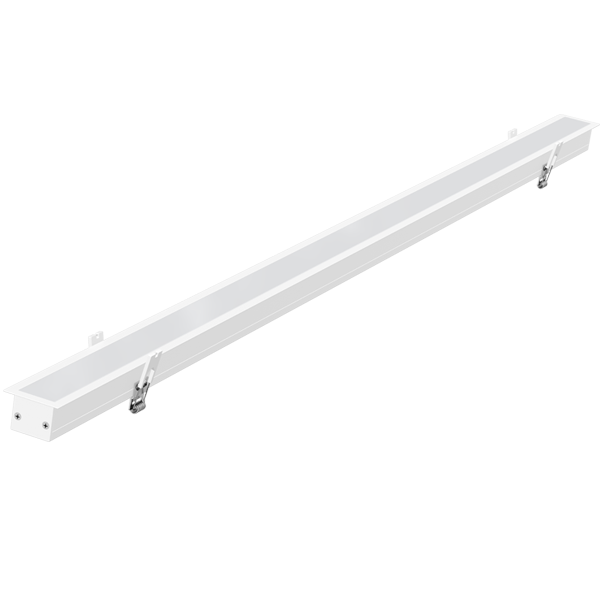

LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profile, the different dimension, and size, easy to install, and different customized dimensions are also acceptable, which can meet the installation requirement of different fields and occasions.
Color: cool white(5000-6500K), natural white(3700-4500K), warm white(2700-3200K), other available
Power factor>0.95
Saving energy: 50%
Lifespan more than 50,000Hrs
IP code: IP40
Standard warranty: 3 years
Follow CE Certified
| Model | CCT | LED type | Lumen(lm) (±10%) | CRI | Beam angle | Power(W) (±10%) | Voltage (V) | PF | Weight (Kg) |
| SC-RL4932-018-AW-01W | 5000-6500K | 2835 | 1375lm | >80 | 110° | 18W | AC 100-240V 50/60Hz | >0. 95 | 0.5 |
| SC-RL4932-018-AW-01NW | 3700-4500K | 1412lm | |||||||
| SC-RL4932-018-AW-01WW | 2700-3200K | 1197lm | |||||||
| SC-RL4932-024-AW-01W | 5000-6500K | 2835 | 1746lm | >80 | 110° | 24W | AC 100-240V 50/60Hz | >0. 95 | 1.4 |
| SC-RL4932-024-AW-01NW | 3700-4500K | 1727lm | |||||||
| SC-RL4932-024-AW-01WW | 2700-3200K | 1568lm | |||||||
| SC-RL4932-036-AW-01W | 5000-6500K | 2835 | 2992lm | >80 | 110° | 36W | AC 100-240V 50/60Hz | >0. 95 | 1.9 |
| SC-RL4932-036-AW-01NW | 3700-4500K | 2793lm | |||||||
| SC-RL4932-036-AW-01WW | 2700-3200K | 2439lm |
