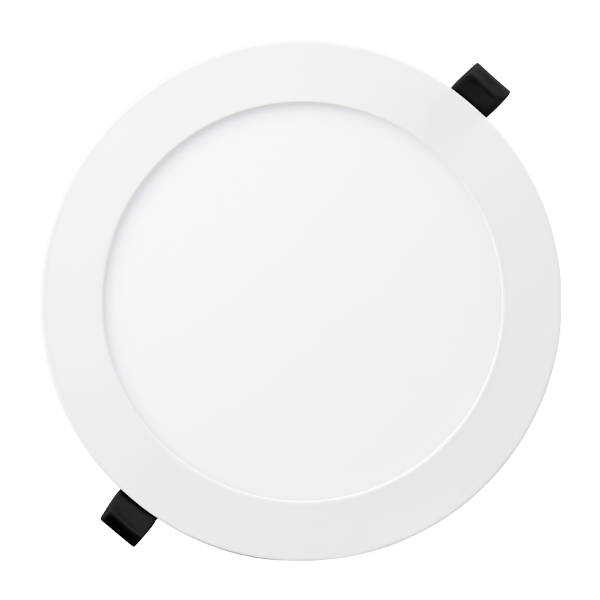

3CCT Adjustable LED Slim Downlight

3CCT Adjustable LED Slim Downlight

  • Super slim lamp body, 16.8mm high;

  • The diffuser plate adopt double-sided frosted plate, more uniform light;

  • The frame adopt ADC 12, better cooling effect; adopt low-power large LEDs, and LEDs work in low temperature;

  • The back cover adopt bending, powder spraying; consistent whole effect, and prevent light-leaking;

  • The lamp is designed with low SDCM(SDCM<3)


3CCT Adjustable LED Slim Downlight
Inquire
Inquire
Share
Share
Specifications

Parameters

ModelColourCCTLuminous flux(±10%)LEDTypeCutout size±2(mm)Voltage(V)Power(W)(±10%)CRIPF

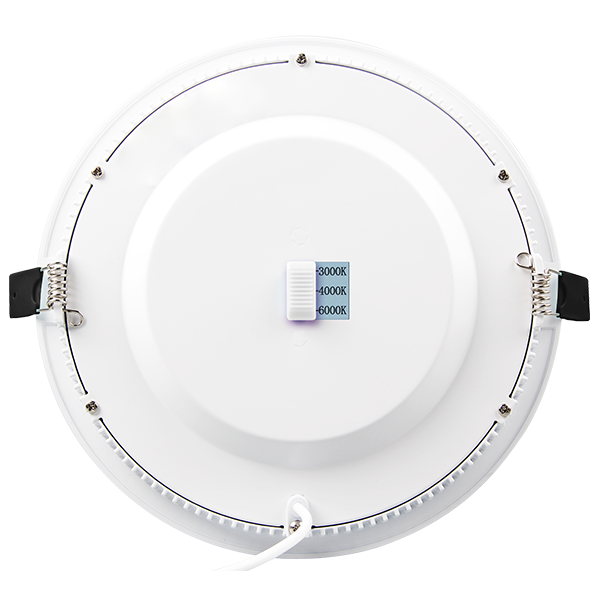

SC-DL09-D145-R-AW-01RE3 CCT
adjustable
3000K-4000K-6000K5502835Ф135

220-240 VAC

50/60Hz

9>80>0.9
SC-DL12-D180-R-AW-01RE880Ф17012
SC-DL18-D220-R-AW-01RE1500Ф20518
SC-DL22-D220-R-AW-01RE1800Ф20522


Size

Slim Light Box Panel
